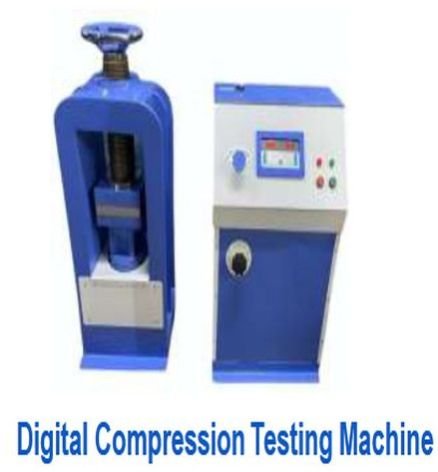

Testing Machine

• Capacity – 50 T to 300 T

• Digital Display

• Chanel Frame

• Hydraulic Operated

• Power - Single Phase / 3 phase

• Capacity – 100 Nm to 6000 Nm

• Digital Display

• MS Frame

• Electrically Operated

• Power - Single Phase / 3 phase

The Magnetic Particle Inspection method of Non-Destructive testing is a method for locating surface and sub-surface discontinuities in ferromagnetic material.

Magnetic Particle Testing is the most reliable method for detecting surface cracks in steel and iron components. We offer you a great selection of equipment and supplies. Whether you need a portable Yoke or Coil, Portable or Mobile tester or a conventional or 3-D multi-directional Wet Horizontal Bench Tester we can provide you with the best value in equipment and supplies.

 It depends for its operation on the face that when the material or part under test is magnetized, discontinuities that lie in a direction generally transverse to the direction of the magnetic field, will cause a leakage field, and therefore, the presence of the discontinuity, is detected by use of finely divided ferromagnetic particles applied over the surface, some of these particles being gathered and held by the leakage field, this magnetically held collection of particles forms an outline of the discontinuity and indicates its location, size, shape and extent.

Dry magnetic particle examinations and wet fluorescent magnetic particle examinations are performed on ferromagnetic materials to detect surface and slight subsurface discontinuities. Specialized wet fluorescent magnetic particle techniques are available for black light internal examinations.

Gauge Length 25 & 50 mm

• Extension – 2 mm

• Train Gage Type

• Prices Rs. 85,000

Gauge Length 25 & 50 mm

• Extension – 5 mm

• Train Gage Type

• Prices Rs. 1,05,000

Gauge Length 100, 200, 600 mm

• Extension – 25 mm

• Train Gage Type

• Prices Rs. 1,35,000

Capacity – 50 T to 300 T
• Digital Display
• 4 column
• Hydraulic Operated
• Power - Single Phase / 3 phase

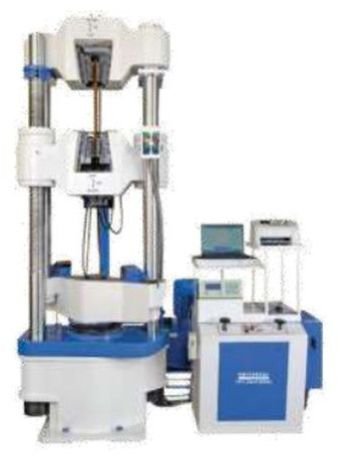

Universal Testing Machine Variety of tests like Tension, Compression, Transverse, etc. are conducted. Continuous roll autographic “Load Vs Elongation” recorder. Extra (Optional) Accessories such as - Extensometer, Pace (load) rate control, Load-Stabilizer, Attachment for - Brinell test, Tensile test for shouldered & threaded, Shear test, Bolts-Nuts & Washer test, Rope test, Flat Belt test, Bend Re-bend test, 180° Bend test, Pull-Out test, Chain testing, etc. Loading Accuracy as high as + 1 % as per BS: 1610 & IS 1828 (Part 1) : 2015.

Features :

• Loading Accuracy as high as + 1 %
• Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials
• High reading accuracy due to large size design of dial.
• Wide range of standard and special accessories, including load stabilizer.
• Large effective clearance between columns enables testing of standards specimens as well as structures.
• Simple controls for easy of operation.
• Robust staining frame of an extremely rigid construction.
• Safe operation ensured be means of safety devices.
• Fully enclosed and protected pendulum.
• Straining at variable speeds to suit a wide range of materials.
• Printer & PC graphs enable study the behavior of the materials.
• Simplicity in reading because of digital readouts.
• Wide range of standard and special accessories, includingload stabilizer, load rate, strain rate control
• Simple controls for easy of operation.
• Robust straining frame of an extremely rigid construction.
• Safe operation ensured be means of safety devices.
• Fully enclosed and protected pressure transducer.
• RS 232 serial port to transfer data to computer for analysis/Storage evaluation etc.
• Manual control & release valve operation.

TENSILE TESTING MACHINE Variety of tests like Tension, Compression, Transverse, etc. are conducted. Continuous roll autographic “Load Vs Elongation” recorder. Extra (Optional) Accessories such as - Extensometer,, Attachment for - Tensile, Rope test, Flat Belt test, wood, paper, rubber, plastic. Loading Accuracy as high as + 1 % as per BS: 1610 & IS 1828 (Part 1) : 2015

Features :

• Loading Accuracy as high as + 1 %

• Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials

• High reading accuracy due to large size design of dial.

• Wide range of standard and special accessories, including load stabilizer.

• Large effective clearance between columns enables testing of standards specimens as well as structures.

• Simple controls for easy of operation.

• Robust staining frame of an extremely rigid construction.

• Safe operation ensured be means of safety devices.

• Fully enclosed and protected pendulum.

• Straining at variable speeds to suit a wide range of materials.

• Printer & PC graphs enable study the behavior of the materials.

• Simplicity in reading because of digital readouts.

• Wide range of standard and special accessories, including load stabilizer, strain rate control

• Simple controls for easy of operation

• Robust straining frame of an extremely rigid construction.

• Safe operation ensured be means of safety devices

• Fully enclosed and protected pressure transducer.

• RS 232 serial port to transfer data to computer for analysis/ Storage evaluation etc

• Manual control & release valve operation

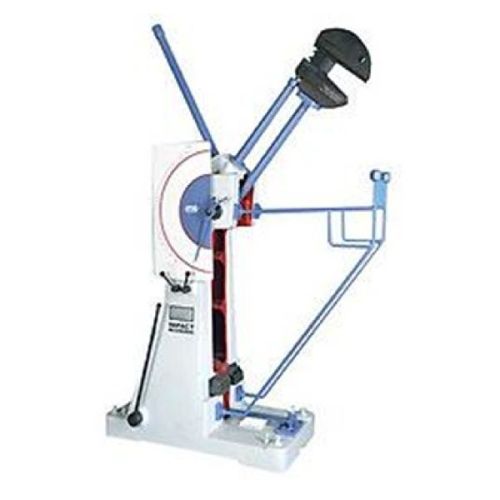

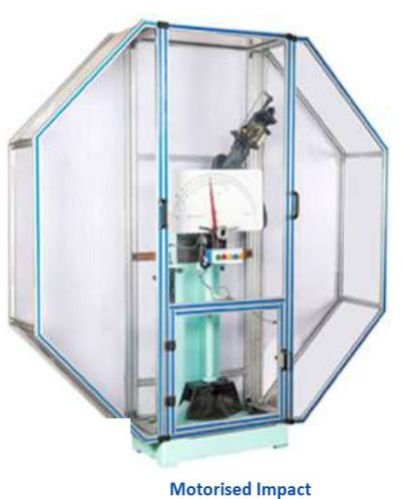

Impact Testing MachineThe pendulum Impact Tester is designed for conducting Izod and Charpy Test. The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy & the lower one for Izod testing. On release, the pendulum swings down to brake the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture of the test specimen and is read from the maximum pointer position on the dial scale.It is read on digital readout in case of electronic machinesAccuracy conform to IS:3766-2003, IS:1598-1977, IS:1757-1999, IS:1499-2003, BS:131-Part- I, II, III, IV & BSEN-10045-1993 (ISO 148-2) for Charpy

Capacity – 100 Nm to 6000 Nm
• Digital Display
• MS Frame
• Electrically Operated
• Power - Single Phase / 3 phase
