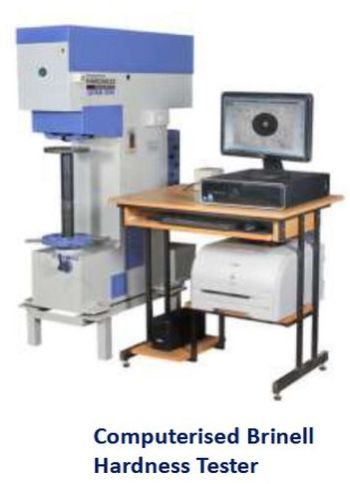

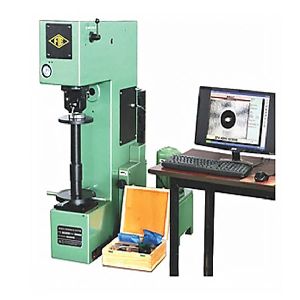

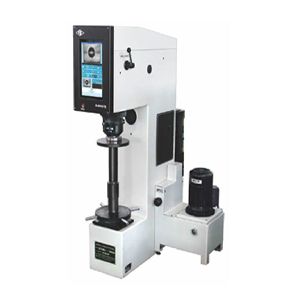

Computerised Brinell Hardness Tester

This machine is designed for measuring hardness of castings, forgings, other metals & alloys of all kinds, hard or soft, whether round, flat or irregular in shapes. This machine is ideally suitable for laboratories, tool rooms, Heat treatment shops, R&D departments, inspection departments, foundries & educational institutions.Machine designed with a hydraulic power pack and control circuit for effortless loading unloading operation. A dial gauge in front measure depth of ball penetration. Brinell Hardness Tester are suitable for production testing and precision engineered confirming to IS : 1500- 2013, BS : 240 and ASTM : E 10

Features :

• Computerised Machine designed with a hydraulic power pack and control circuit for effortless loading unloading operation.
• An unlimited number of batches can be created with its own test parameters and certificates. Selection of test load and indentor size with party name, address, certificate no. date batch no. and high and low limits for readings etc.
• Facility for Auto / Semi Auto / Manual modes of operation.
• Well managed database saves readings w.r.t. batch and certificate.
• Report generation in the form of certificate and graph as per customer requirements.
• Facility for calibration and check of calibration.
• The range of measurement is from 1mm to 6 mm of diameter with resolution of 0.01mm.
• Standard Software CD is provided which consists of Serial Number, Hardness values & Limits.
