Dynamic Balancing Machine

Hard bearing type horizontal end driven two plane machines and vertical balancing machine with microprocessor based or DSP based measuring panel suitable for balancing of different types of rotors like rotor of electrical machines, fly wheels, crankshafts, submersible pump rotors, etc.Both type of machines are provided with electronic companion software to compensate the unbalance effect due eccentricity between rotating (Spindle ) axis & adaptor (Rotor) axis Additional bed length with or without gap bed arrangement can be provided at extra cost for extra-long rotors. Machines conform to IS:13277-1992

Features :

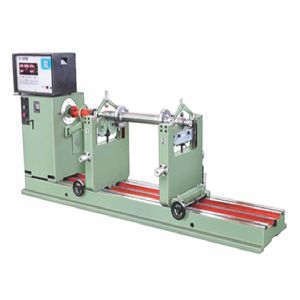

• Hard bearing type horizontal end driven two plane machineswith microprocessor based measuring panel.

• Measures & stores the unbalance in gms along with the anglefor two selected correction planes on digital display.Minimum achievable unbalance upto 0.5 micron shift in c.g. Various Models

• Suitable for rotors from 0.5 kg to 10,000 kg. Horizontal belt driven hard bearing two plane machines are also supplied for rotors weighing from 0.1 kg upto 3000 kg. Unbalance indication either by stroboscopic method or photo scanning method sensitivity upto 0.5 micron.

• Computerized / Electronic versions with printer facility & special machines to suit customers’ requirements can also be supplied
