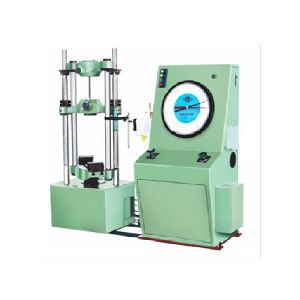

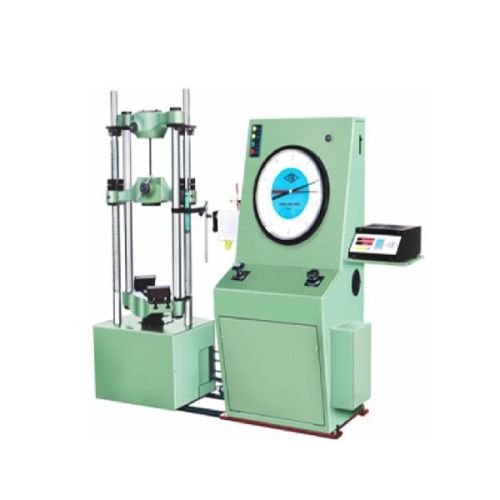

Universal Testing Machine

Universal Testing Machine Variety of tests like Tension, Compression, Transverse, etc. are conducted. Continuous roll autographic “Load Vs Elongation” recorder. Extra (Optional) Accessories such as - Extensometer, Pace (load) rate control, Load-Stabilizer, Attachment for - Brinell test, Tensile test for shouldered & threaded, Shear test, Bolts-Nuts & Washer test, Rope test, Flat Belt test, Bend Re-bend test, 180° Bend test, Pull-Out test, Chain testing, etc. Loading Accuracy as high as + 1 % as per BS: 1610 & IS 1828 (Part 1) : 2015.

Features :

• Loading Accuracy as high as + 1 %
• Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials
• High reading accuracy due to large size design of dial.
• Wide range of standard and special accessories, including load stabilizer.
• Large effective clearance between columns enables testing of standards specimens as well as structures.
• Simple controls for easy of operation.
• Robust staining frame of an extremely rigid construction.
• Safe operation ensured be means of safety devices.
• Fully enclosed and protected pendulum.
• Straining at variable speeds to suit a wide range of materials.
• Printer & PC graphs enable study the behavior of the materials.
• Simplicity in reading because of digital readouts.
• Wide range of standard and special accessories, includingload stabilizer, load rate, strain rate control
• Simple controls for easy of operation.
• Robust straining frame of an extremely rigid construction.
• Safe operation ensured be means of safety devices.
• Fully enclosed and protected pressure transducer.
• RS 232 serial port to transfer data to computer for analysis/Storage evaluation etc.
• Manual control & release valve operation.
